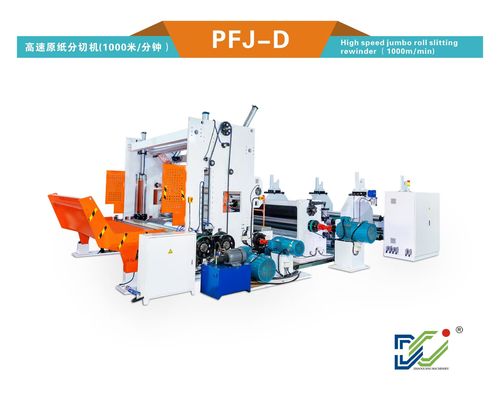

High Speed Slitting Rewinding Machine with calender Large Diameter 1500mm unwidnding unit
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| 機械の色: | 白またはカスタマイズ | バックスタンドユニット: | 2-5個 オーダーメイド |
|---|---|---|---|
| エンボスユニット: | オプション | カレンダー部分: | オプション |
| 機械速度: | 1000メートル/分 | コントロール: | PLCおよびサーボ モーター |
| 保証: | 販売後サービス1年 終身 | パッキング: | 木製パレット |
| 電圧: | 380v、50hz | ||
| ハイライト: | high speed slitter rewinder machine,large diameter slitting rewinding machine,1500mm unwinding unit slitter |
||
Product Description
This machine is designed for slitting and rewinding tissue jumbo rolls to obtain the paper reels with the required specifications for converting machines. It features a wallboard-type mechanical structure, ensuring stable high-speed operation and compact winding performance. The lower slitting unit features an integral blade shaft fully equipped with a multi-blade cutting set, adaptable to various cutting specifications.
Slitters
Pneumatic slitters
minmums slitter width 80mm
Pneumatic slitters
minmums slitter width 80mm
Mother reel unwinder
2.5m diameter mother reel.
2.5m diameter mother reel.
Finished pape roll
Autoamtic discharge device
Autoamtic discharge device
| Machine Model | PFJ-D |
| Jumbo roll width | 2600/2900/3200/3600/4200mm other sizes to be specified |
| Parent roll diameter | <=Φ2500mm other sizes to be specified |
| Running speed | 1000m/min |
| Finished product diameter | Φ100-1800mm other sizes to be specified |
| Width of finished product | >=60mm |
| Finished product paper core diameter | 76.2mm other sizes to be specified |
| Web spreading roller | Rubber arc roller |
| Calender | /Steel to rubber or Steel to Steel |
| Sltinng system | Auto servo control upper blades. Lower blade shaft is equipped with a multi-blade cutting set |
| Rewinding system | By Air-shaft |
| Finished product unload | Hydraulic |
| Edge trimming | Vacuum |
