Color Printing 7.3Kw 1/4 Folded Serviette Napkin Machine
|
商品の詳細:
お支払配送条件:
|
詳細製品概要
| 条件: | 新しい完了して下さい | 色刷: | 1-2色 |
|---|---|---|---|
| 電圧: | 380v、50Hz | 力: | 3.3-7.3Kw |
| 速度: | 600pcs/min | 原産地: | フォーシャン、中国（本土） |
| ハイライト: | 1/4 Folded Serviette Napkin Machine,7.3Kw Serviette Napkin Machine,600pcs/min Tissue Paper Production Line |
||

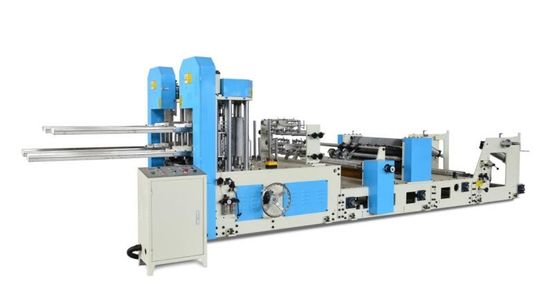

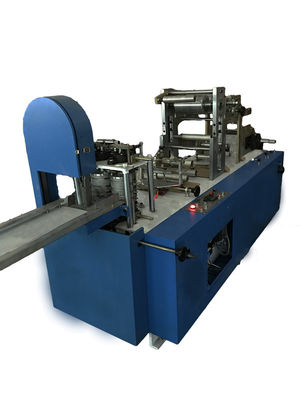

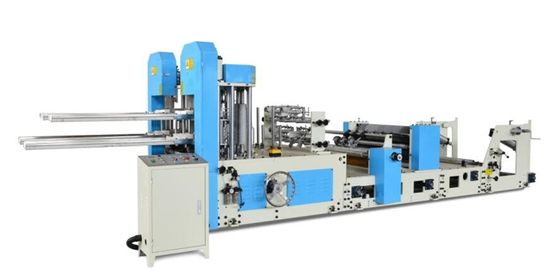

Serviette Napkin with Color PrintingFolding Machine 1/4 Folded Style
CJ-190-400 Napkin Tissue Folding Machine
Features:
1. Frequency converter control
2. Automatic electrical counting
3. Pneumatic loading
4. Automatic stop while machine blocked
| MODEL | CJ-190 | CJ-200 | CJ-230 | CJ-240 | CJ-270 | CJ-300 | CJ-330 | CJ-400 |
| Max.jumbo roll width(mm) | 190 | 200 | 230 | 240 | 270 | 300 | 330 | 400 |
| Folded size(mm) | 95*95 | 100*100 | 115*115 | 120*120 | 135*135 | 150*150 | 165*165 | 200*200 |
| Unfolded size(mm) | 190*190 | 200*200 | 230*230 | 240*240 | 270*270 | 300*300 | 330*330 | 400*400 |
| Max.jumbo roll diameter | 1100mm(other size should be ordered) | |||||||
| Jumbo roll core inner diameter | 76mm | |||||||
| Backstand | Fix type,pneumatic type(should be order) | |||||||
| Folding style | 1/4 folded | |||||||
| Color printing | 0-2 colors(should be ordered) | |||||||
| Embossing unit | Steel to rubber,steel to paper,steel to steel(should be ordered) | |||||||
| Counting | Electrical counter | |||||||
| Speed control | Frequency converter | |||||||
| Power | 2.1-4.1Kw,380V,50Hz | |||||||
| Machine weight | About 800-1600Kg | |||||||
